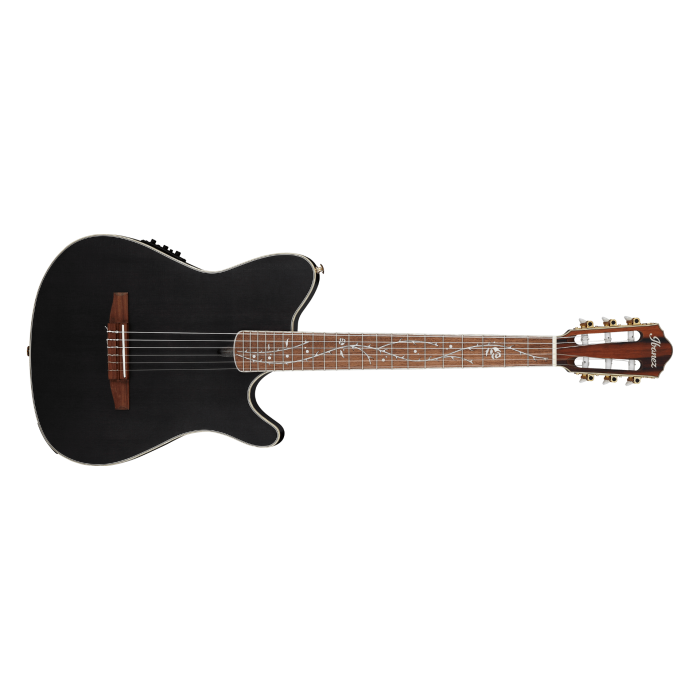

Ibanez TOD10N Tim Henson Signature Model Guitar
-
SPECS
-
body shapeFRH body
-
bracingFan Bracing for FRH
-
topSolid Sitka Spruce top
-
back & sidesSapele back & Sapele sides
-
neckC ShapeNyatoh neck
-
fretboardWalnut fretboard
-
bridgeWalnut bridge
-
body bindingPearloid Binding
-
inlayTree of Death inlay
-
tuning machineGold Classical tuners
-
number of frets22
-
stringsD'Addario® XTC45
-
string gauge.028/.032/.040/.028W/.035W/.044W
-
string space11.6mm
-
factory tuning1E,2B,3G,4D,5A,6E
-
pickupFishman® S-Core
-
preampIbanez AEQ210TF preamp w/Onboard tuner
-
output jack1/4" output
-
battery9V battery
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width46mm at NUT
-
b : Width58mm at 14F
-
c : Thickness21mm at 1F
-
d : Thickness22mm at 7F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
BODY DIMENSIONS
-
-
a : Length17 5/16"
-
b : Width14 3/16"
-
c : Max Depth1 15/16"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
Features
Walnut fretboard
A Walnut fretboard features a well-balanced tonal character from low to high end.
Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Fishman® S-Core pickup & Ibanez AEQ210TF preamp w/Onboard tuner
Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into. The AEQ210TF preamp provides the extra punch of on-board EQ, and the convenience of an easy-to-read digital tuner.
Walnut bridge
The Walnut bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Modified FR hollow body w/ Fan bracing
Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.
46mm width nut / 400R fretboad radius
The combination of a narrow 46mm width nut and 400R fretboard radius offers easy fingering.
Side Sound Port
The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.
"Tree of Death" fingerboard Inlay
The name and the design of this fingerboard inlay are both nods to the iconic Ibanez "Tree of Life" inlay design, but with a twist.
-
